We Provide Metallic Ring Joint Gaskets which are suitable for high pressure and high temperature applications. The Joint Gaskets are available in R, RX, BX styles and in oval/octagonal profiles. SKEI manufacturers in accordance with specific tolerances on CNC machines.
Ring Joint Gaskets fully comply with the ASME B16.20 standard and the API spec 6A requirements (where applicable).
Prime Features

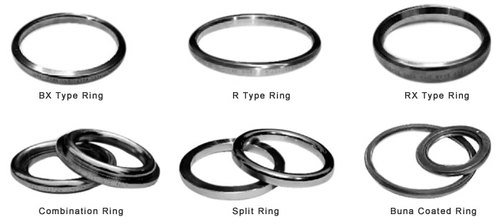

R type (oval and octagonal) solid sections to fit standard ring joints flanges with trapezoidal groves,
Types RX and BX with complex beveled edge sections for wellhead pressure above 700 bar.
Combination gaskets – used where two flanges of different sizes are to be joined together
Split Gaskets – used where an API flange is to be joined with a low pressure ANSI Flange where a spiral wound gasket is used.
Special metal gaskets made to customer specifications.
Non – standard: high nickel alloy steel, and other stainless grades
Rubber coated ring joints gaskets 9- soft iron metal ring joint gaskets are coated with nitrite rubber for texting wellhead assemblies and valves, Rings can be reused and do not damage flange grooves
