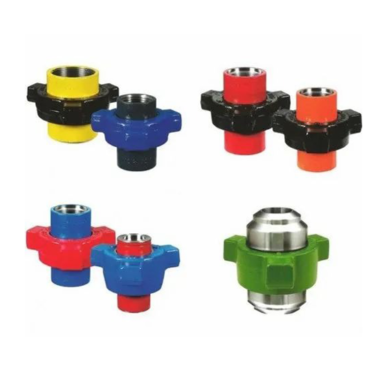

Hammer Unions

We provide Hammer Unions which are manufacture from high quality steel forged to perfection for seamless usage in your assembly line. SKEI provides a full range of Hammer Unions from 1″ to 12″ withstanding pressures upto 15,000 psi. These Unions are available with threaded, butt-weld, socket weld, blind, plug connections. SKEI also provides unions to suit SOUR applications as per NACE-MR-01-75 latest edition. The unions are manufactured using modern state of art technologies to obtain a high quality product.

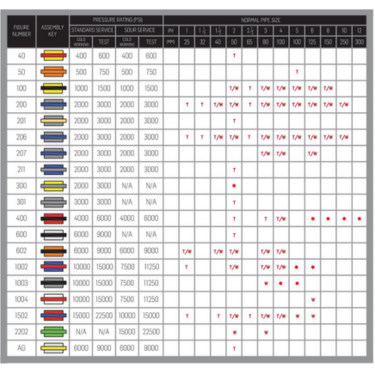

FIGURE 40

  • Recommended for air, water, oil or gas service to 400 PSI
  • Available in threaded.

    • FIGURE 50

  • Recommended for air, water, oil or gas service to 500 PSI
  • Available in threaded
  • Available in bronze on application

    • FIGURE 100

  • Cold working pressure - 1,000 PSI
  • Low pressure union
  • Maniflod & general service

    • FIGURE 200

  • Cold working pressure - 2,000 PSI
  • O-Ring in metal sub sealing extends life
  • cup and cone provide "Zero clearance against extrusion"

    • FIGURE 201

  • Cold working pressure - 2,000 PSI
  • O-Ring in metal sub sealing extends life
  • cup and cone provide "Zero clearance against extrusion"

    • FIGURE 206

  • Cold working pressure - 2,000 PSI
  • O-Ring in metal sub sealing extends life
  • Cup and cone provide "zero clearance against extrusion"
  • Available in threaded & butt weld
  • All sizes available in sore service
  • Available socket-weld unions in 2", 3", 4", & 6"

    • FIGURE 207

  • Cold working pressure - 2,000 PSI
  • Maniflod and blanking the end of line - 'O' ring cap provides leak-free seal
  • Connection cap can be tapped for pressure gauge or valve
  • Available in threaded & butt weld

    • FIGURE 211

  • Cold working pressure - 2,000 PSI Designed specifically to meet
  • Designed specifically to meet satisfactory results in low pressure flowing area.
  • Best suited for economic application area

    • FIGURE 301

  • Cold working pressure - 2,000 PSI Designed specifically to meet
  • satisfactory results in low pressure flowing area.
  • Best suited for economic application area

    • FIGURE 400

  • 2" to 4" sizes CWP is 4,000 PSI
  • 6" to 12" sizes CWP is 2500 PSI
  • Mainly used for maniflod pumping and mud pumping

    • FIGURE 600

  • Cold working pressure: 6,000 psi Designed specifically to meet
  • satisfactory results with non-ferrous sealing seat.

    • FIGURE 602

  • Cold working pressure: 6,000 psi Lip type elastomer seal protects
  • metal designed to reduce turbulence in the line.
  • Usage mainly in manifold and mud services
  • Available with non-pressure thread sealing ends

    • FIGURE AG

  • Cold working pressure: 6,000 psi Elastomer seal protects metal-to-
  • metal designed to reduce turbulence in the line
  • Best suited for economic application areas

    • FIGURE 607

  • Cold working pressure: 6,666 psi Elastomer seal protects metal-to-
  • metal designed to reduce turbulence in the line
  • Best suited for economic application areas

    • FIGURE 1002

  • Cold working pressure: 10,000 PSI Field replaceable lip type elastomer
  • seal protects secondary metal-tometal seal
  • 5" and 6" butt-weld are 7,500 PSI for standard service
  • 5" and 6" butt-weld are 5,000 PSI for sour service

    • FIGURE 1003

  • Cold working pressure – 10,000 PSI Misaligning unions are used in high
  • pressure applications where the lines are not aligned
  • 4" & 5″ is 7,500 PSI for standard service .
  • 4" & 5″ is 5,000 PSI for sour service

    • FIGURE 1004

  • Cold working pressure – 10,000 PSI Field replaceable lip type elastomer
  • 5″ & 6" is 10,000 PSI for standard service .
  • Available in forged steel for butt weld connections

    • FIGURE 1502

  • Cold working pressure -15,000 PSI Field replaceable lip type elastomer protects
  • metal-to-metal seal are secondary used in high pressure applications where the lines are not aligned
  • Used mainly in choke / kill lines, cementing, fracturing / testing Available in threaded, welded, butt
  • weld and non-pressure thread sealing ends

    • FIGURE 2202

  • Cold workinp pressure -15,000 PSI
  • Field replaceable lip type elastomer seal protects secondary metal-to-metal seal
  • Used in sour gas services
  • Meets Nace MR-O1-75 standards
  • Butt-weld Schedule XXH only
